DESIGN / PROTOTYPE / MANUFACTURE

From digital model to working hardware.

Our development process combines CAD/CAM, 3D modelling, prototyping and practical fabrication. The aim is to resolve the assembly as a system, not simply produce an attractive panel face.

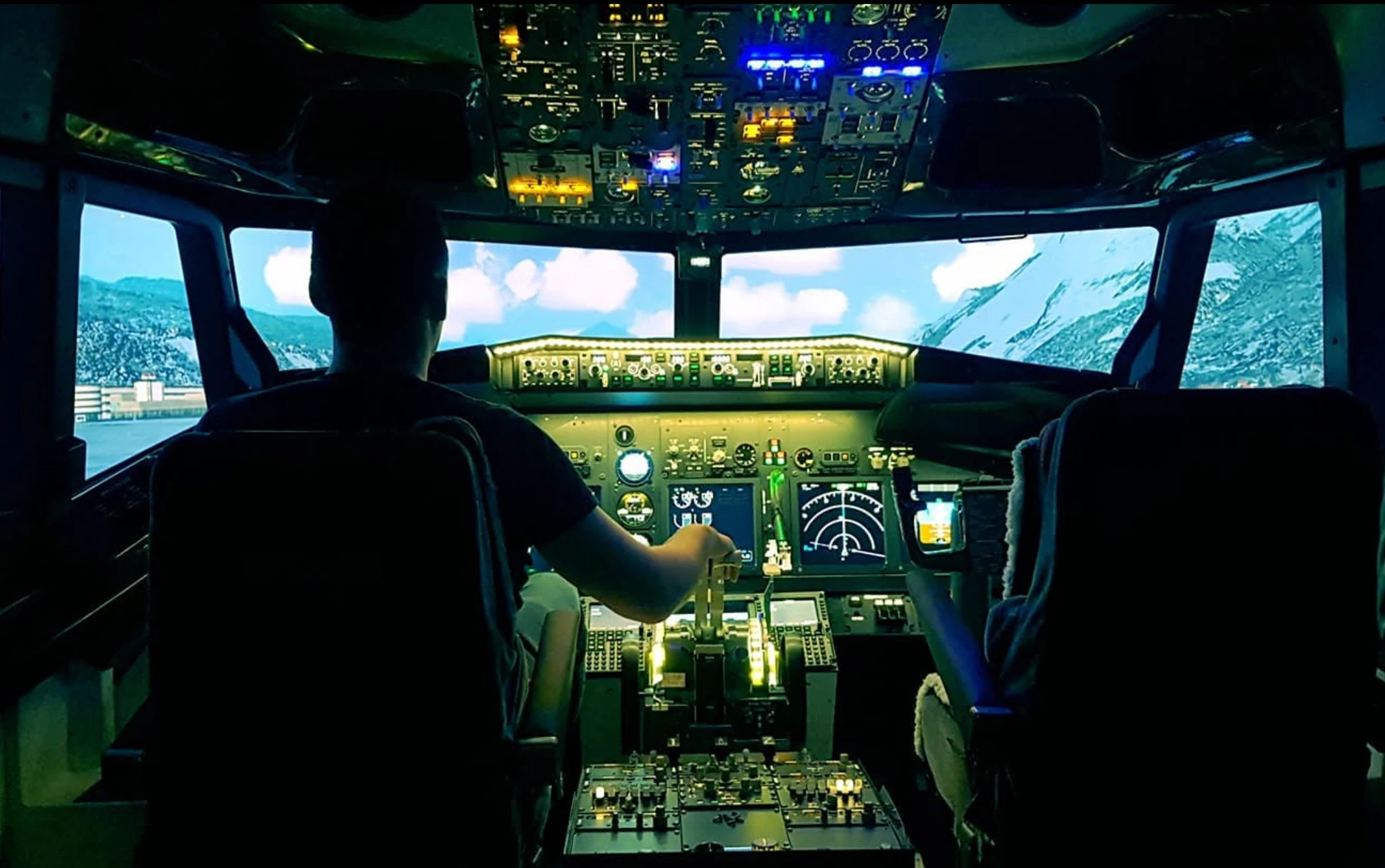

Powered 737 simulator with illuminated controls and scenery
Actual hardware · project photograph

CAD/CAM as a connected process

Computer-aided design establishes the geometry and arrangement of an item; computer-aided manufacturing turns an appropriate design into instructions for a chosen manufacturing process [1]. In simulator development, the connection between those stages matters because small changes can affect fit, control placement and neighbouring assemblies.

Our use of CAD/CAM is part of a wider workflow that also includes physical prototyping and hands-on construction. This website does not imply ownership of a particular machine tool, software brand or industrial production line merely because a process is discussed.

Three-dimensional modelling before material is committed

A digital model can help explore enclosure shape, mounting positions, panel spacing and the relationship between components. It is a useful place to compare alternatives before making a complete physical assembly.

For a simulator, the model also needs context. A part may fit on its own but be awkward to install once it sits beneath a panel or between two seats. We are interested in the surrounding geometry, access route and practical assembly sequence as well as the individual component.

Prototyping and 3D printing

Additive manufacturing builds a part in layers and can support rapid checks of a developing design [2]. For our work, 3D printing sits alongside other prototyping methods rather than replacing every conventional manufacturing technique.

A prototype might explore the shape of a control, the fit of a cover or the arrangement of a mounting component. Material choice and the purpose of the test remain important. Demonstrating appearance or fit is different from demonstrating long-term performance in the intended application.

Panels, looms and the hidden assembly

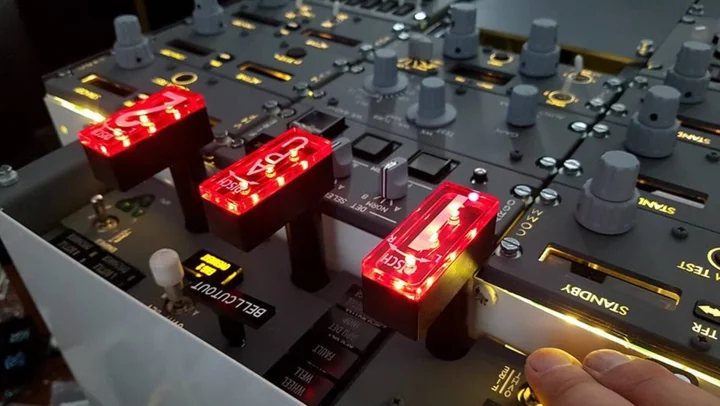

The early pedestal and overhead photographs show how much work sits behind the visible controls. Wiring, connectors, supports, lighting and enclosure space all compete for room. Their arrangement influences assembly work and later access.

The panel is therefore considered as part of a larger physical interface. The development examples show switches and displays alongside their supporting connections, with the goal of reaching a practical balance between a convincing front face and an accessible hardware arrangement.

Build decisions that respect the budget

Cost-effective manufacturing is not simply a matter of choosing the cheapest material. It also involves deciding which questions can be answered economically, where a reusable prototype makes sense and when it is worth moving to a more finished construction method.

We aim to avoid committing expensive resources before the layout and underlying approach have been explored. That does not mean a prototype material is suitable for every production role. A final specification needs to reflect the intended use, handling, environment and service requirements.

Preparing for a production phase

Moving beyond a prototype requires attention to repeatability, the availability of components and the way the assembly will be supported. A design that works as a one-off demonstration may need changes before it becomes sensible to reproduce.

A useful production discussion therefore includes the number of units, expected use, installation constraints, acceptable material options and the degree of future change required. We welcome enquiries about individual assemblies as well as complete simulator projects. Any manufacturing scope, lead time and support arrangement is agreed for the specific work.
